12V 10A 120W LED Power Supply SMPS | AC to DC Converter for LED Strip & Lighting

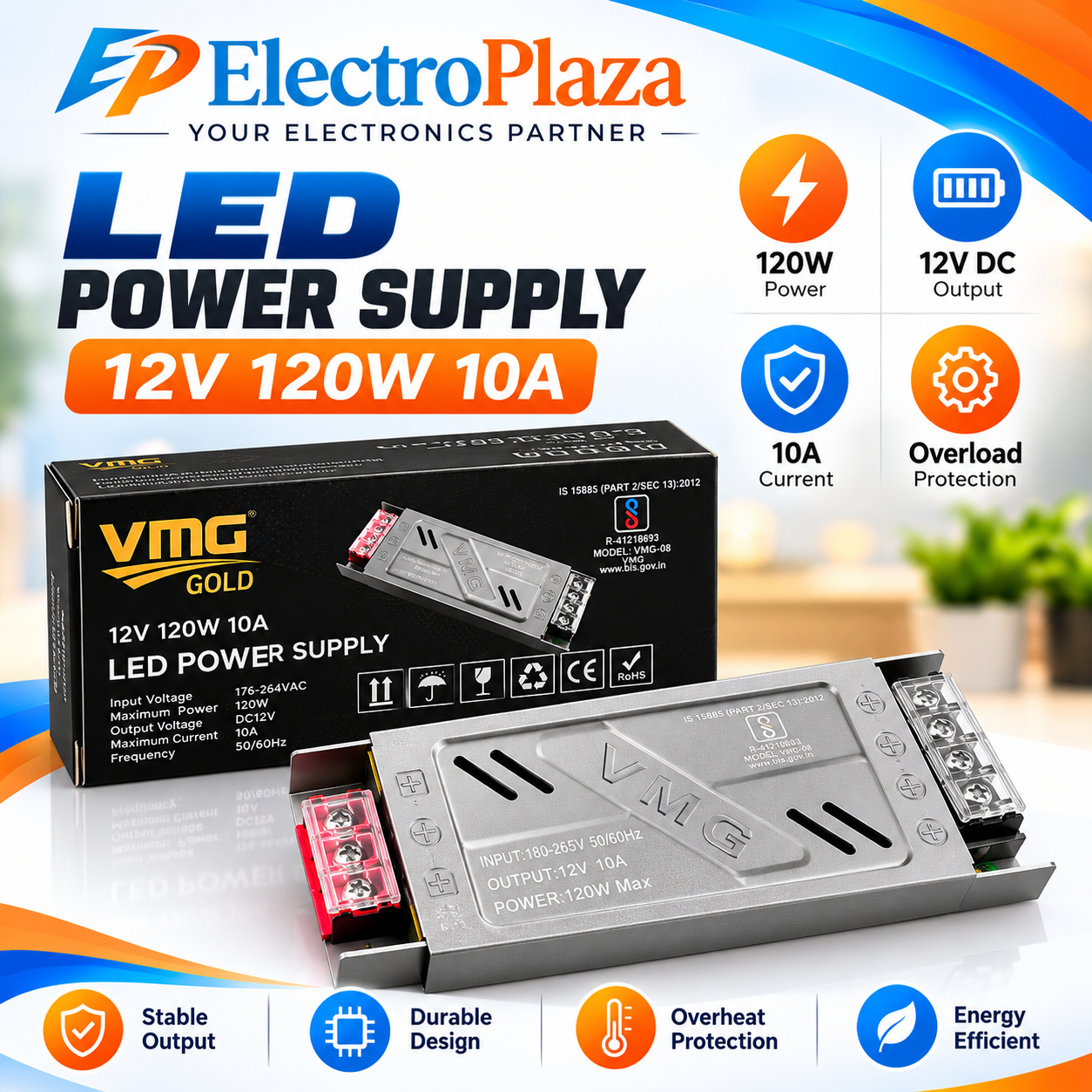

VMG Gold 12V 10A 120W LED Power Supply SMPS – AC to DC Converter

The VMG Gold 12V 10A 120W LED Power Supply is a switching mode power supply (SMPS) designed to convert AC mains electricity into 12V DC power for compatible LED lighting systems and electronic devices.

Featuring a compact metal enclosure with ventilation slots and screw terminal connections, this power supply is suitable for various indoor electrical and electronic applications.

Key Features

– 12V DC Output: Designed to power compatible 12V DC devices.
– 120W Maximum Power: Rated for a maximum output of 120 watts.
– 10A Output Current: Supports loads requiring up to 10 amperes within the rated capacity.
– Metal Enclosure: Ventilated housing designed to assist heat dissipation.
– Screw Terminal Connection: Convenient terminals for AC input and DC output wiring.
– Compact Design: Suitable for compatible LED lighting installations and electronic projects.
– AC to DC Conversion: Converts supported AC mains input into DC output.

Technical Specifications

Specification| Details
Brand| VMG Gold
Product Type| LED Power Supply SMPS
Model| VMG-08 (as marked)
Input Voltage| AC 180–265V
Output Voltage| DC 12V
Output Current| 10A Max
Maximum Output Power| 120W
Frequency| 50/60Hz
Enclosure| Metal
Connection Type| Screw Terminal
Quantity| 1 Piece

Applications

– 12V LED Strip Lights
– LED Lighting Modules
– LED Sign Boards
– Compatible CCTV Equipment
– DIY Electronics Projects
– Other Compatible 12V DC Devices

Important Safety Instructions

– Installation should be performed by a qualified person.
– Disconnect the AC power supply before wiring.
– Check the input and output terminal markings carefully.
– Ensure correct DC output polarity before connecting a device.
– Do not exceed the rated output capacity.
– Install in a dry, well-ventilated location.
– Do not cover the ventilation openings.
– Use appropriate electrical protection and earthing where required.

Package Includes

1 × VMG Gold 12V 10A 120W LED Power Supply SMPS

Note: Product appearance and packaging may vary slightly between batches.
